Water Pumps

Metro Water Pumpsets

split casing

Split Casing

single cylinder engines with split casing single cylinder engine with volute casing

volute casing

Volute Casing

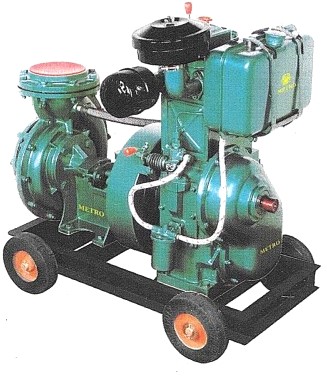

loose and fast pulley SINGLE CYLINDER ENGINE WITH SPLIT CASING PUMP
MOTO POMPE - SPLIT CASING

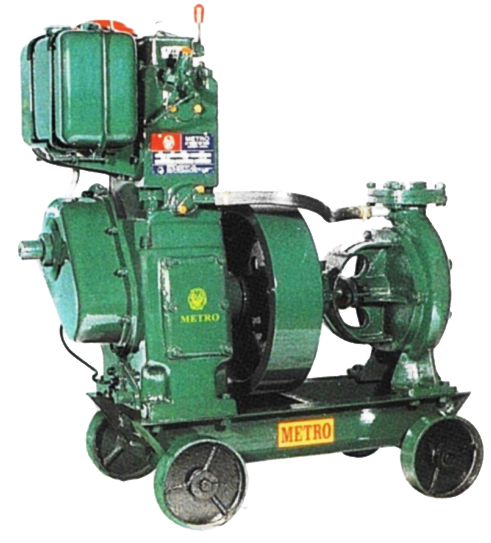

SINGLE CYLINDER ENGINE WITH VOLUTE CASING PUMP
MOTO POMPE - VOLUTE CASING

Loose and Fast Pulley



METRO POWER DRIVEN CENTRIFUGAL PUMP SETS (DIRECT COUPLED) - WATER COOLED
Item Code Diesel Engine Cylinder Pump Size RPM Head Range (MTRS) Capacity (LTRS/SEC)
HP KW Suction Delivery
METRO-P45 4.5 3.3 1 65 50 1800 12.0 - 16.0 12.0 - 8.0
METRO-P50 5.0 3.7 1 65 50 1500 12.0 - 16.0 15.0 - 9.0
METRO-P51 5.0 3.7 1 80 80 1500 10.0 - 16.5 21.0 - 10.0
METRO-P52 5.0 3.7 1 100 100 1500 10.0 - 16.5 23.0 - 11.0
METRO-P65 6.5 4.0 1 80 80 1500 13.0 - 20.0 20.5 - 11.0
METRO-P651 6.5 4.0 1 100 80 1500 10.0 - 15.0 33.0 - 15.0
METRO-P652 6.5 4.0 1 100 100 1500 9.0 - 14.0 35.0 - 17.0
METRO-P75 7.5 5.5 1 65 50 1800 18.0 - 25.0 18.0 - 9.0
METRO-P751 7.5 5.5 1 80 80 1800 14.0 - 21.0 24.0 - 14.0
METRO-P752 7.5 5.5 1 100 100 1500 6.5 - 13.5 33.5 - 15.5
METRO-P753 7.5 5.5 1 125 125 1500 5.5 - 9.6 53.0 - 34.0
METRO-P80 8.0 6.0 1 65 50 1800 18.0 - 23.0 18.0 - 9.0
METRO-P81 8.0 6.0 1 80 80 1800 15.5 - 23.0 25.0 - 15.0
METRO-P82 8.0 6.0 1 100 100 1500 7.0 - 15.0 32.0 - 14.0
METRO-P83 8.0 6.0 1 125 125 1500 6.0 - 12.0 52.0 - 32.0
METRO-P10 10.0 7.5 1 100 100 1500 6.0 - 12.0 60.0 - 30.0
METRO-P101 10.0 7.5 1 125 125 1500 6.0 - 12.0 69.0 - 38.0
METRO-P12 12.0 9.0 1 125 125 1500 7.0 - 12.0 65.0 - 37.0
METRO-P121 12.0 9.0 1 150 150 1500 6.0 - 11.0 68.0 - 40.0
METRO-PD12 12.0 9.0 2 125 125 1500 7.0 - 12.0 65.0 - 37.0
METRO-PD121 12.0 9.0 2 150 150 1500 6.0 - 11.0 68.0 - 40.0
METRO-PD15 15.0 11.0 2 125 125 1500 5.5 - 9.0 70.0 - 40.0
METRO-PD151 15.0 11.0 2 150 150 1500 5.0 - 9.0 75.0 - 43.0
METRO-PD20 20.0 14.5 2 150 150 1500 6.0 - 17.0 90.0 - 55.0
METRO-PD25 25.0 18.5 2 150 150 1800 6.5 - 19.0 59.0 - 47.0
METRO-PD30 30.0 22.2 2 150 150 1800 6.5 - 20.0 90.0 - 55.0







PUMP TYPE : (1)Volute casing, centre delivery, with single ball bearing & gland. (2) Volute casing, centre delivery, with double taper roller bearing & oil seal. (3) Split casing, centre delivery, with single ball bearing & gland. (4)Split casing, side/centre delivery with loose & fast pulley.
STD. ACCESSORIES : Starting handle, spanner set, tool bag, four iron wheels and handle.
OPTIONAL ACCESSORIES : G.I. pipes, G.I. bends, C.I. nipples, foot valves, sockets, clamps, flat flex hose & round flex hose.
OPTIONAL ITEMS : Big silencer, extension shaft & rubber wheels.
OPTIONAL MODEL : With air cooled engines.
APPLICATIONS : For suction & delivery of water for agricultural and commercial purposes.
